Yash Pumps

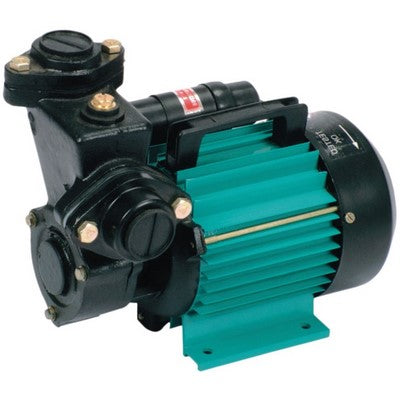

Self Priming Pump 0.50HP 25x25mm YM-F2

Self Priming Pump 0.50HP 25x25mm YM-F2

Rs. 5,099.00
Rs. 5,099.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Domestic Self Priming Pump 0.50 H.P. 25mmx25mm F2
YM-F2


Approved by ISI


Description:

  • Used for water supply in residential Bungalows, Flats, Hotels, Garages, Dairies and laundries.
  • Water circulation for fountains and solar heater systems.
  • Gardening and curing at civil works.
  • Used as suction Booster in cities.
  • Ornamental sprinklers.



Technical data:

Power 0.37kW
HP 0.50
Version Single Phase, 160 – 240Volt
(Permanent Split Capacitor)
RPM 2880
Frequency 50Hz
Insulation Class B
Duty Type S1 (Continuous)


Operating data:
Duty Point Head 27 Meters
Duty Point Discharge 1120 LPH
Suction lift 8 Meters
Total head 34 Meters
Nominal pump size in mm 25x25 (sucxdel)
Maximum Flow rate 2.7 m³/hr / 2750 LPH
Maximum operating pressure 3.4 bar
Maximum Liquid temperature 45º C
Maximum Ambient temperature 65º C


Structural Characteristics:
  • SS 410 Stainless steel shaft
  • Forged Brass Impeller
  • Aluminum Motor Frame for better heat dissipation
  • Dynamically Balanced rotating parts
  • Double sealed precision ball bearing
  • In built - Thermal Overload Protector (TOP)
  • Back pull out design for easy service
  • Motor winding: Copper

Price Breakup:
Printed MRP: Rs. 4156
Extra Shipping Charges: Rs. 443

Manufactured, Marketed, and Dispatched by: Yash Manufactures


Guarantee:
One year Guarantee on manufacturing defects (excluding winding).
Winding is not at all covered in guarantee/warranty clause.
Manufacturer is committed for best after sales services.
For warranty related issue, send email to: info@yashpump.in & cc to: support@kisanestore.in
