Yash Pumps

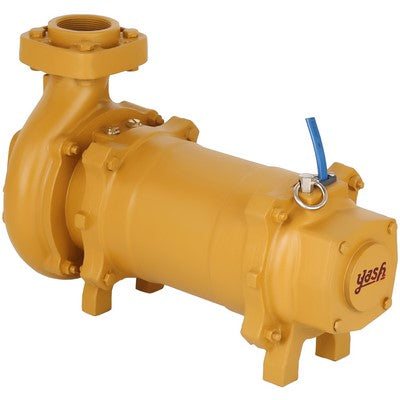

Open Well Submersible 3HP 65x50mm C.I. Body (Copper Rotor) V-8 YM8-334 / YM8-OPWSP

Open Well Submersible 3HP 65x50mm C.I. Body (Copper Rotor) V-8 YM8-334 / YM8-OPWSP

Rs. 22,299.00
Rs. 23,024.00 Rs. 22,299.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

V-8 C.I. BODY OPENWELL SUBMERSIBLE PUMP 3.00 H.P. (65X50) THREE PHASE (Copper Rotor)

YM8-334 / YM8-OPWSP


Approved by ISI


46 BEE( BUREAU OF ENERGY EFFICIENCY) 5 Star Model

Description:

SALIENT FEATURES
→ Specially designed to start in low voltage and sustain in high voltage fluctuations.
→ High electrical and mechanical efficiency.
→ Higher heat dissipation.
→ Dynamically balanced rotor and other rotating parts for uniform clearance.
→ Specially designed bearing to withstand axial thrust loads.
→ Designed for high voltage fluctuations.
→ Noise free operation.
→ Modular design and all parts are easily interchangeable.
→ Energy Efficient Models.
→ Higher efficiency resulting in lower operating cost.
APPLICATION
→ Agriculture Farm
→ Industries Water Supply
→ Sprinkler & Drip Irrigation
→ Gardens
→ Residential Complex
→ Hospitals
→ Water Treatment Plant
TECHNICAL DATA
MODEL → YM8-334
POWER → 2.20 Kw
H.P. → 3.00
STAGE → 01
CURRENT IN AMPS → 6.50
VERSION → THREE PHASE 250 TO 440 VOLT
RATED SPEED IN RPM → 2880
FREQUENCY → 50 Hz
CATEGORY → B
DUTY TYPE → S1 (CONTINUOUS)
TYPE → WET TYPE
CONNECTION → STAR
OPERATING DATA
DUTY POINT HEAD → 26 METERS
DUTY POINT DISCHARGE → 419 LPM 25.14 m³/hr
OPERATING HEAD RANGE → 18 TO 32 METERS
OPERATING DISCHARGE RANGE → 566 TO 190 LPM
SUCTION → 65 MM (2.5")
DELIVERY → 50 MM (2.0")
CORRECT SPEED IN RPM → 2820
MAXIMUM FLOW RATE → 594 LPM 35.64 m³/hr
TOTAL HEAD → 34 METERS
MAXIMUM OPERATING PRESSURE → 3.40 Bar
MAXIMUM LIQUID TEMPERATURE → 35º
PARTICULARS MATERIALS OF CONSTRUCTION
MOTOR BODY → CI - FG - 200
BEARING BUSH → LTB - 4 BRONZE
MOTOR SHAFT → S.S.410
THRUST BEARING → S.S. 420 RING & FIBER PLATE
HOUSING / BACK COVER → CI - FG -200
STAMPING → CRNO - M45
SCREWS / STUDS / OTHER PARTS → S.S. 410 & S.S. 202
IMPELLER → CI - FG - 200
CASING → CI - FG - 200
WINDING WIRE → E.C. GRADE COPPER / HIGH INSULATION
ROTOR → E.C. GRADE COPPER & CRNO - M45


​Manufactured, Marketed, and Dispatched by: Yash Manufacturers

Guarantee:
One year Guarantee on manufacturing defects (excluding winding).
Winding is not at all covered in guarantee/warranty clause.
Manufacturer is committed for best after sales services.
For warranty related issue, send email to: info@yashpump.in & cc to: support@kisanestore.in
