Yash Pumps

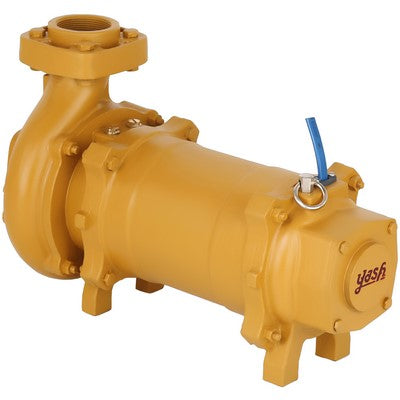

Open Well Submersible 2hp 65x50mm C.I. Body (Copper Rotor) V-7 YM-221

Open Well Submersible 2hp 65x50mm C.I. Body (Copper Rotor) V-7 YM-221

Rs. 17,299.00
Rs. 19,499.00 Rs. 17,299.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

V-7 C.I. BODY OPENWELL SUBMERSIBLE PUMP SET 2.00 H.P. (65X50) SINGLE PHASE (Copper Rotor)

YM-221


Approved by ISI

Description:
SALIENT FEATURES
→ Specially designed to start in low voltage and sustain in high voltage fluctuations.
→ High electrical and mechanical efficiency.
→ Higher heat dissipation.
→ Dynamically balanced rotor and other rotating parts for uniform clearance.
→ Specially designed bearing to withstand axial thrust loads.
→ Designed for high voltage fluctuations.
→ Noise free operation.
→ Modular design and all parts are easily interchangeable.
→ Energy Efficient Models.
→ Higher efficiency resulting in lower operating cost.
APPLICATION
→ Agriculture Farm
→ Industries Water Supply
→ Sprinkler & Drip Irrigation
→ Gardens
→ Residential Complex
→ Hospitals
→ Water Treatment Plant
TECHNICAL DATA
MODEL → YM-221
POWER → 1.50 Kw
H.P. → 2.00
STAGE → 01
CURRENT IN AMPS → 13.50
VERSION → SINGLE PHASE 140 TO 240 VOLT
RATED SPEED IN RPM → 2880
FREQUENCY → 50 Hz
CATEGORY → B
DUTY TYPE → S1 (CONTINUOUS)
TYPE → WET TYPE
CONNECTION → PARALLEL (CSCR)
OPERATING DATA
DUTY POINT HEAD → 16 METERS
DUTY POINT DISCHARGE → 345 LPM 20.70 m³/hr
OPERATING HEAD RANGE → 12 TO 22 METERS
OPERATING DISCHARGE RANGE → 440 TO 175 LPM
SUCTION
DELIVERY		 → 65 MM (2.5")
→ 50 MM (2.0")
CORRECT SPEED IN RPM → 2820
MAXIMUM FLOW RATE → 600 LPM 36.00 m³/hr
TOTAL HEAD
MAXIMUM OPERATING PRESSURE		 → 23 METERS
→ 2.30 Bar
MAXIMUM LIQUID TEMPERATURE → 35º
PARTICULARS MATERIALS OF CONSTRUCTION
MOTOR BODY → CI - FG - 200
BEARING BUSH → LTB - 4 BRONZE
MOTOR SHAFT → S.S.410
THRUST BEARING → S.S. 420 RING & FIBER PLATE
HOUSING / BACK COVER → CI - FG -200
STAMPING → CRNO - M45
SCREWS / STUDS / OTHER PARTS → S.S. 410 & S.S. 202
IMPELLER
CASING		 → CI - FG - 200
→ CI - FG - 200
WINDING WIRE → E.C. GRADE HIGH INSULATION
ROTOR → E.C. GRADE COPPER & CRNO - M45


Guarantee:
One year Guarantee on manufacturing defects (excluding winding).
Winding is not at all covered in guarantee/warranty clause.
Manufacturer is committed for best after sales services.
For warranty related issue, send email to: info@yashpump.in & cc to: support@kisanestore.in
