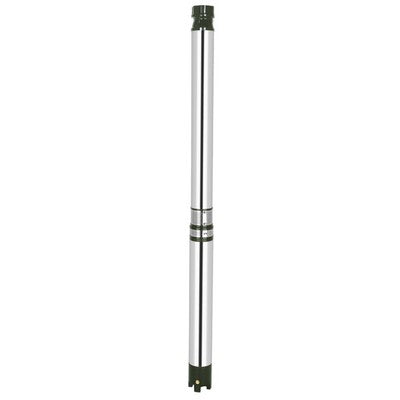

Bore Well Submersible 2HP 6 Stage 100mm V-4 YM-18

Bore Well Submersible 2HP 6 Stage 100mm V-4 YM-18

Rs. 22,499.00
Rs. 23,199.00 Rs. 22,499.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

V-4 100MM BORE WELL SUBMERSIBLE PUMP SET 2 H.P. 06 STAGE SINGLE PHASE

YM-18


Approved by ISI

Description:
SALIENT FEATURES
→ Corrosion resistant stainless steel body.
→ Specially designed to start in low voltage and sustain in high voltage fluctuations.
→ High electrical and mechanical efficiency.
→ Higher heat dissipation.
→ Dynamically balanced rotor and other rotating parts for uniform clearance.
→ Specially designed bearing to withstand axial thrust loads.
→ Designed for high voltage fluctuations.
→ Noise free operation.
→ Modular design and all parts are easily interchangeable.
→ Energy Efficient Models.
→ Higher efficiency resulting in lower operating cost.
APPLICATION
→ Agriculture Farm
→ Industries Water Supply
→ Sprinkler & Drip Irrigation
→ Gardens
→ Residential Complex - High rise Buildings
→ Hospitals
→ Water Treatment Plant
TECHNICAL DATA
MODEL
BORE SIZE		 → YM-18
→ 100 MM (4")
POWER → 1.50 Kw
H.P. → 2.00
STAGE → 06
CURRENT IN AMPS → 13.00
VERSION → SINGLE PHASE 140 TO 240 VOLT
RATED SPEED IN RPM → 2880
FREQUENCY → 50 Hz
CATEGORY → B
DUTY TYPE → S1 (CONTINUOUS)
TYPE → WET TYPE
CONNECTION → PARALLEL (CSCR)
OPERATING DATA
DUTY POINT HEAD → 18 METERS
DUTY POINT DISCHARGE → 279 LPM 16.74 m³/hr
OPERATING HEAD RANGE → 13 TO 27 METERS
OPERATING DISCHARGE RANGE → 355 TO 80 LPM
OUT LATE → 50 MM (2.00")
CORRECT SPEED IN RPM → 2820
MAXIMUM FLOW RATE → 415 LPM 24.90 m³/hr
TOTAL HEAD
MAXIMUM OPERATING PRESSURE		 → 31 METERS
→ 3.10 Bar
MAXIMUM LIQUID TEMPERATURE → 35º
PARTICULARS MATERIALS OF CONSTRUCTION
MOTOR BODY / PUMP BODY → S.S. 202
BEARING BUSH → LTB - 4 BRONZE
MOTOR SHAFT / PUMP SHAFT → S.S.410
THRUST BEARING → S.S. 420 & GRAPHITE CARBON
HOUSING / BASE / NRV / SUCTION → CI - FG -200
STAMPING → CRNO - M45
SCREWS / STUDS → S.S. 410 & S.S. 202
IMPELLER / BOWL → NORYL GNF2 TECHNO POLYMER
WINDING WIRE → E.C. GRADE HIGH INSULATION
ROTOR → E.C. GRADE COPPER & CRNO - M45
PCD CUP → NITRILE RUBBER

Guarantee:
One year Guarantee on manufacturing defects (excluding winding).
Winding is not at all covered in guarantee/warranty clause.
Manufacturer is committed for best after sales services.
