Yash Pumps

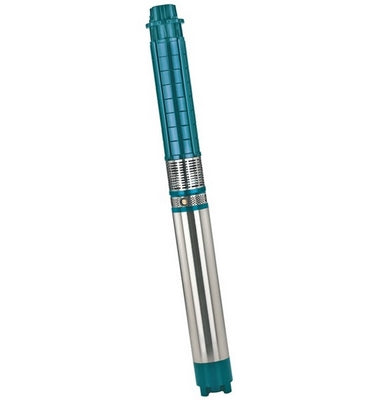

Bore Well Submersible 17.50HP 22 Stage (40 Feet) 150mm V-6 YM40-80

Bore Well Submersible 17.50HP 22 Stage (40 Feet) 150mm V-6 YM40-80

Rs. 60,499.00
Rs. 63,921.00 Rs. 60,499.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
V-6 150MM BORE WELL SUBMERSIBLE PUMP SET 17.50 HP 22 STAGE (40 FEET)

YM40-80


Approved by ISI

Description:
SALIENT FEATURES
→ Corrosion resistant stainless steel body.
→ Specially designed to start in low voltage and sustain in high voltage fluctuations.
→ High electrical and mechanical efficiency.
→ Higher heat dissipation.
→ Dynamically balanced rotor and other rotating parts for uniform clearance.
→ Specially designed bearing to withstand axial thrust loads.
→ Designed for high voltage fluctuations.
→ Noise free operation.
→ Modular design and all parts are easily interchangeable.
→ Energy Efficient Models.
→ Higher efficiency resulting in lower operating cost.
APPLICATION
→ Agriculture Farm
→ Industries Water Supply
→ Sprinkler & Drip Irrigation
→ Gardens
→ Residential Complex - High rise Buildings
→ Hospitals
→ Water Treatment Plant
TECHNICAL DATA
MODEL
BORE SIZE		 → YM40-80
→ 150 MM ( 6 ")
POWER → 13.00 Kw
H.P. → 17.50
STAGE → 22
CURRENT IN AMPS → 33.50
VERSION → THREE PHASE 230 TO 440 VOLT
RATED SPEED IN RPM → 2880
FREQUENCY → 50 Hz
CATEGORY → B
DUTY TYPE → S1 (CONTINUOUS)
TYPE → WET TYPE
CONNECTION → STAR DELTA
OPERATING DATA
DUTY POINT HEAD → 198 METERS
DUTY POINT DISCHARGE → 200 LPM 12.00 m³/hr
OPERATING HEAD RANGE → 132 TO 1242 METERS
OPERATING DISCHARGE RANGE → 350 TO 110 LPM
OUT LATE → 50 MM (2.0")
CORRECT SPEED IN RPM → 2860
MAXIMUM FLOW RATE → 400 LPM 24.00 m³/hr
TOTAL HEAD
MAXIMUM OPERATING PRESSURE		 → 264 METERS
→ 26.40 Bar
MAXIMUM LIQUID TEMPERATURE → 35º
PARTICULARS MATERIALS OF CONSTRUCTION
MOTOR BODY → S.S. 202
BEARING BUSH → LTB - 4 BRONZE
MOTOR SHAFT / PUMP SHAFT → S.S.410
THRUST BEARING → S.S. 420 & GRAPHITE CARBON
HOUSING / BASE / NRV / SUCTION → CI - FG -200
STAMPING → CRNO - M45
SCREWS / STUDS / OTHER PARTS → S.S. 410 & S.S. 202
IMPELLER
BOWL		 → S.S. 304 FABRICATED
→ CI - FG - 200
WINDING WIRE → E.C. GRADE HIGH INSULATION
ROTOR → E.C. GRADE COPPER & CRNO - M45
PCD CUP → NITRILE RUBBER

​Manufactured, Marketed, and Dispatched by: Yash Manufacturers

Guarantee:
One year Guarantee on manufacturing defects (excluding winding).
Winding is not at all covered in guarantee/warranty clause.
Manufacturer is committed for best after sales services.
For warranty related issue, send email to: info@yashpump.in & cc to: support@kisanestore.in
