Yash Pumps

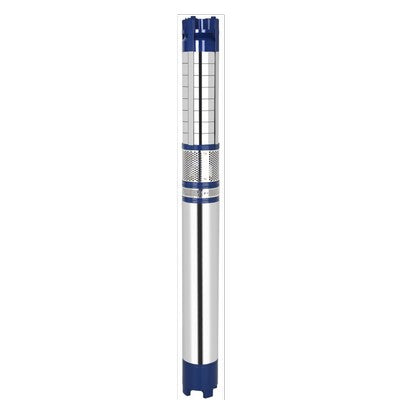

Bore Well Submersible 15HP 12 Stage 150mm (S.S.) V-6 YMS-125

Bore Well Submersible 15HP 12 Stage 150mm (S.S.) V-6 YMS-125

Rs. 67,999.00
Rs. 82,690.00 Rs. 67,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

V-6 150MM BORE WELL SUBMERSIBLE PUMP SET 15.00 H.P. 12 STAGE (S.S.) THREE PHASE

YMS-125


Approved by ISI

Staninless Steel body, Sand Proof Motor & 304 Grade Stainless Steel bowl & Stainless Steel Impeller Suitable for 150mm bore dia

Description:
SALIENT FEATURES
→ Corrosion resistant stainless steel body.
→ Specially designed to start in low voltage and sustain in high voltage fluctuations.
→ High electrical and mechanical efficiency.
→ Higher heat dissipation.
→ Dynamically balanced rotor and other rotating parts for uniform clearance.
→ Specially designed bearing to withstand axial thrust loads.
→ Designed for high voltage fluctuations.
→ Noise free operation.
→ Modular design and all parts are easily interchangeable.
→ Energy Efficient Models.
→ Higher efficiency resulting in lower operating cost.
APPLICATION
→ Agriculture Farm
→ Industries Water Supply
→ Sprinkler & Drip Irrigation
→ Gardens
→ Residential Complex - High rise Buildings
→ Hospitals
→ Water Treatment Plant
TECHNICAL DATA
MODEL
BORE SIZE		 → YMS-125
→ 150 MM ( 6 ")
POWER → 11.00 Kw
H.P. → 15.00
STAGE → 12
CURRENT IN AMPS → 29.50
VERSION → THREE PHASE 230 TO 440 VOLT
RATED SPEED IN RPM → 2880
FREQUENCY → 50 Hz
CATEGORY → B
DUTY TYPE → S1 (CONTINUOUS)
TYPE → WET TYPE
CONNECTION → STAR DELTA
OPERATING DATA
DUTY POINT HEAD → 144 METERS
DUTY POINT DISCHARGE → 333 LPM 19.98 m³/hr
OPERATING HEAD RANGE → 60 TO 180 METERS
OPERATING DISCHARGE RANGE → 491 TO 120 LPM
OUT LATE → 65 MM (2.50")
CORRECT SPEED IN RPM → 2850
MAXIMUM FLOW RATE → 530 LPM 31.80 m³/hr
TOTAL HEAD
MAXIMUM OPERATING PRESSURE		 → 184 METERS
→ 18.40 Bar
MAXIMUM LIQUID TEMPERATURE → 35º
PARTICULARS MATERIALS OF CONSTRUCTION
MOTOR BODY → S.S. 202
BEARING BUSH → LTB - 4 BRONZE
MOTOR SHAFT / PUMP SHAFT → S.S.410
THRUST BEARING → S.S. 420 & GRAPHITE CARBON / LOOSE SEGMENT
HOUSING / BASE / NRV / SUCTION → CI - FG -200
STAMPING → CRNO - M45
SCREWS / STUDS / OTHER PARTS → S.S. 410 & S.S. 202
IMPELLER
BOWL		 → S.S. 410
→ S.S. 304
WINDING WIRE → E.C. GRADE HIGH INSULATION
ROTOR → E.C. GRADE COPPER & CRNO - M45
PCD CUP → NITRILE RUBBER

Manufactured, Marketed, and Dispatched by: Yash Manufacturers

Guarantee:
One year Guarantee on manufacturing defects (excluding winding).
Winding is not at all covered in guarantee/warranty clause.
Manufacturer is committed for best after sales services.
For warranty related issue, send email to: info@yashpump.in & cc to: support@kisanestore.in
